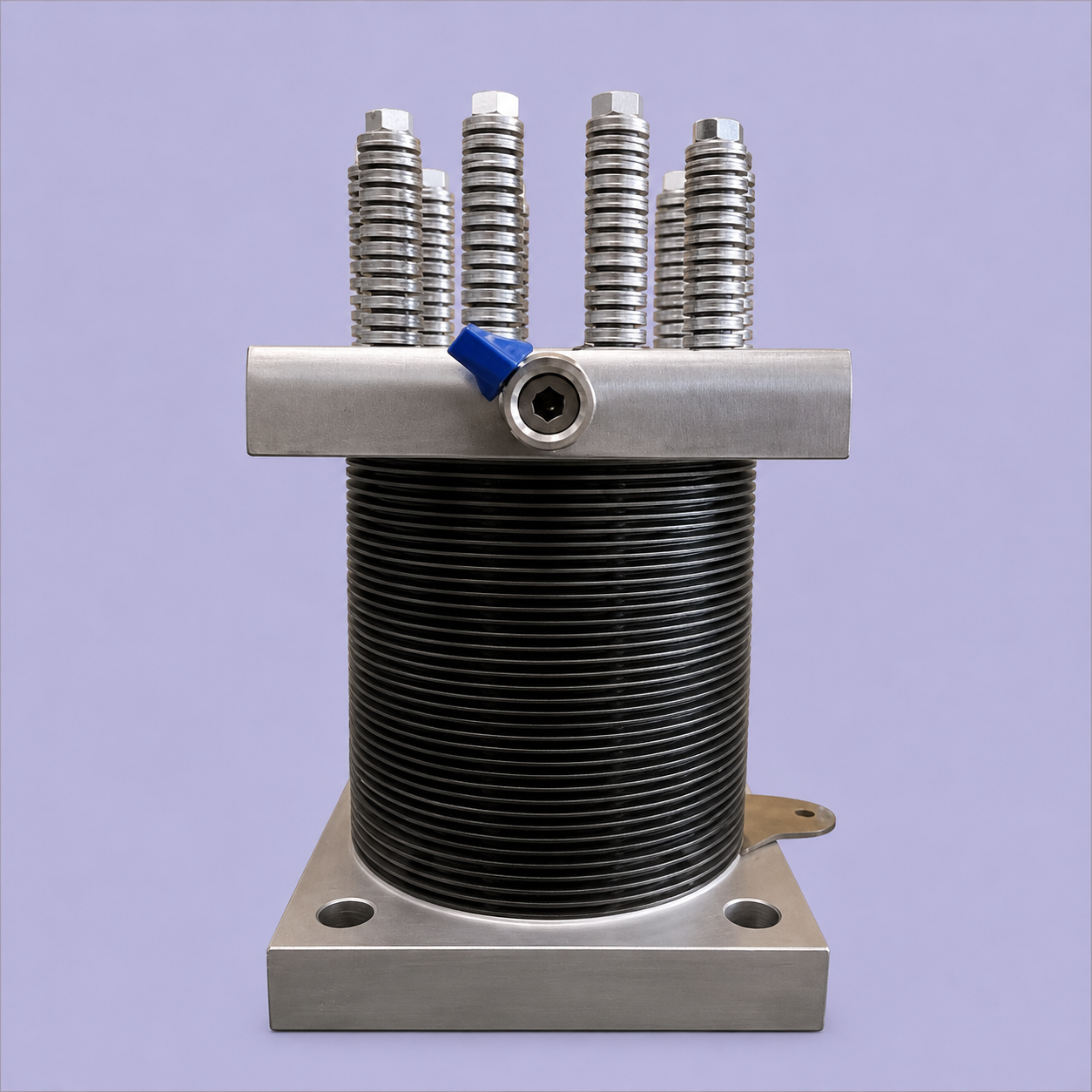

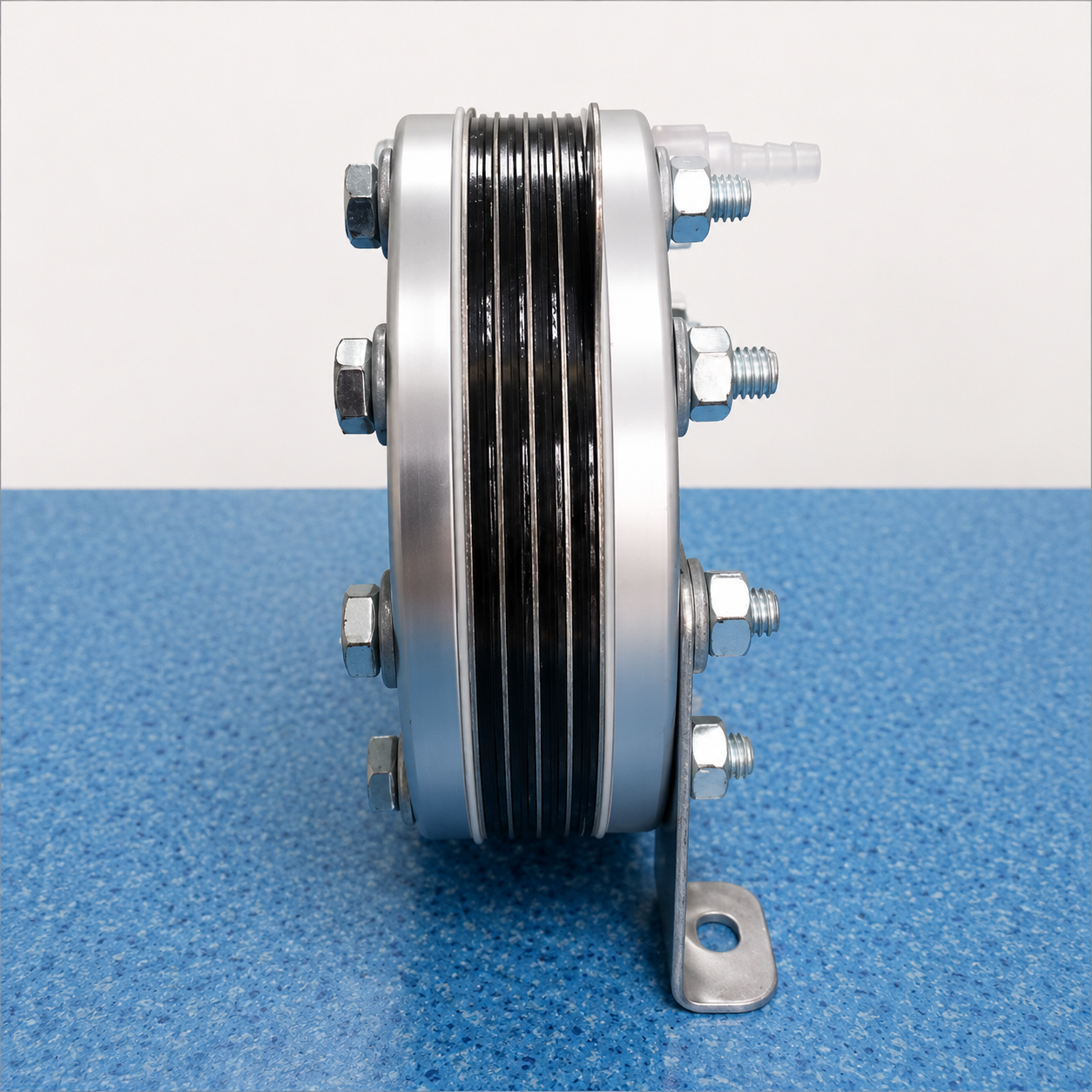

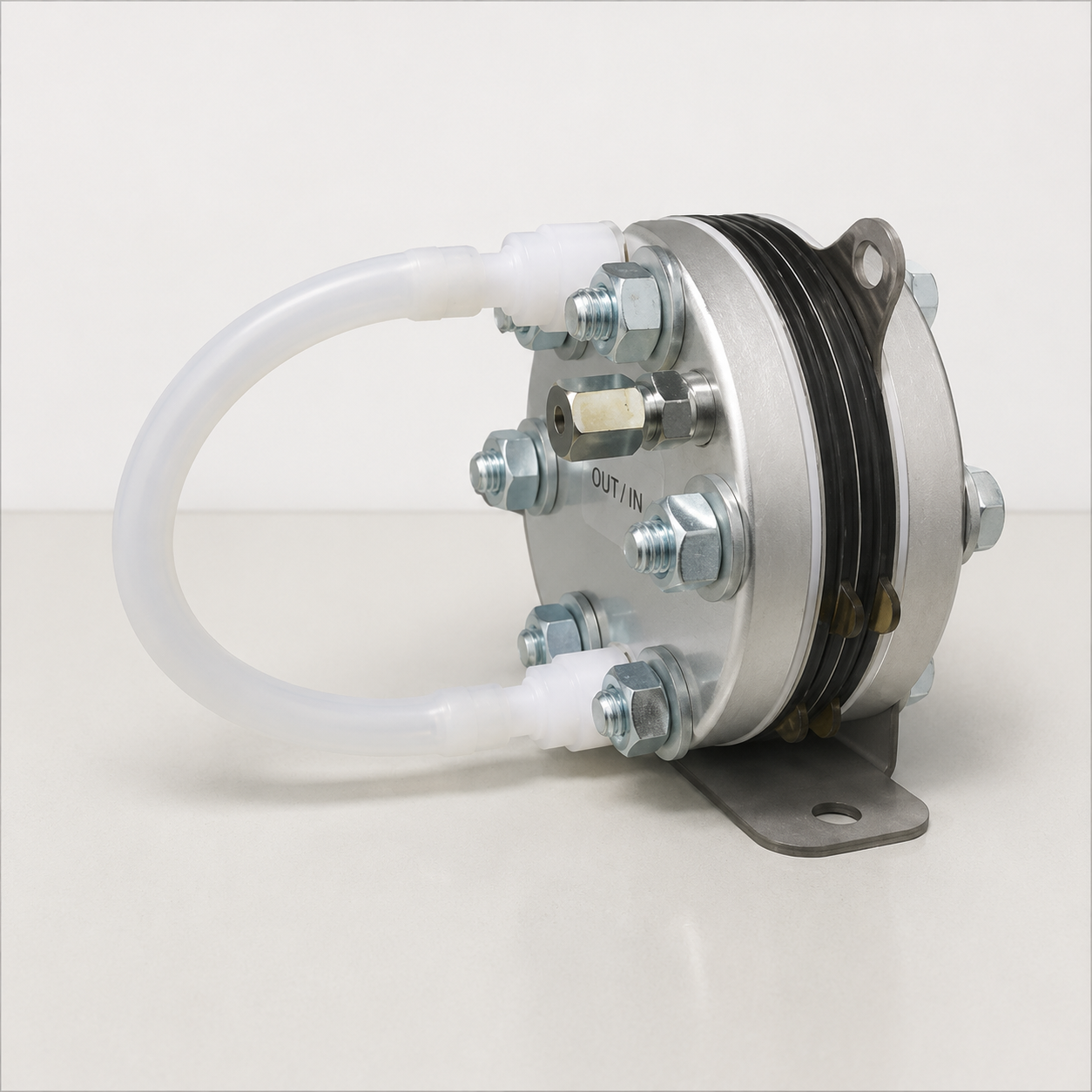

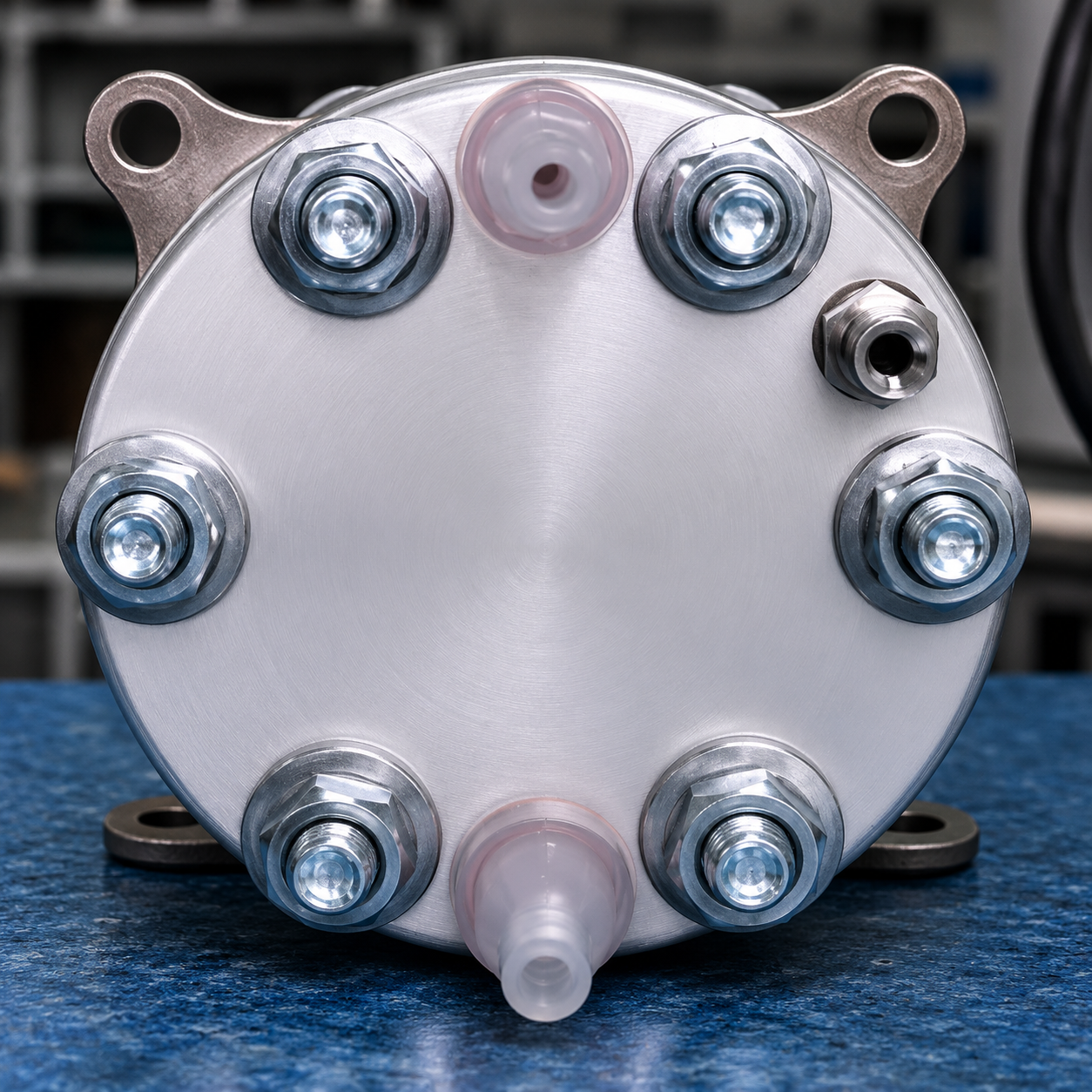

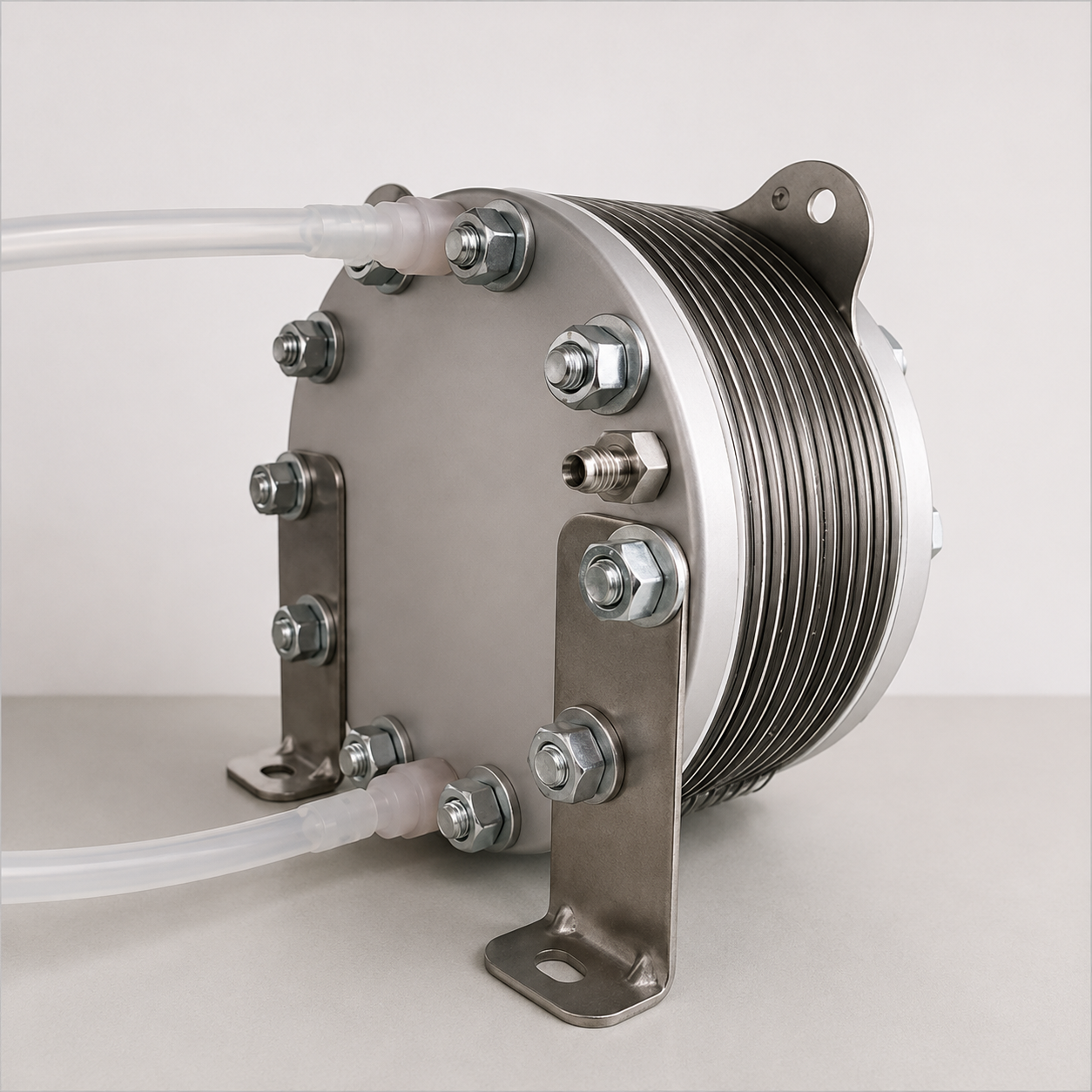

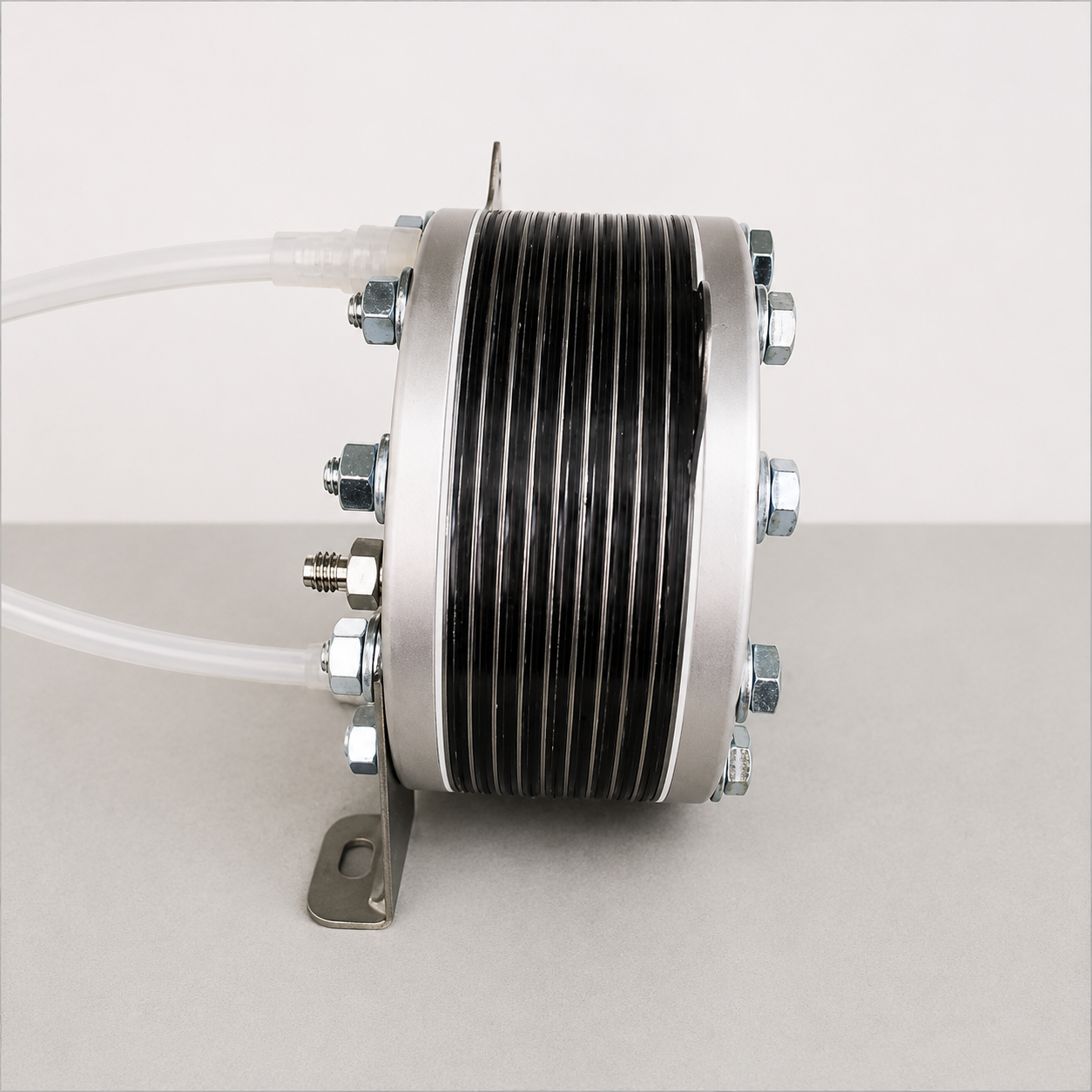

PEM Water Electrolysis Stack - Q series
PEM Water Electrolysis Stack - Q series
A Proton exchange membrane water electrolysis (PEMWE) stack is an electrochemical system that splits water into hydrogen and oxygen gases using electricity. It utilizes a solid polymeric membrane as the electrolyte, allowing for compact designs and high-purity gas production.
These Q series PEMWE stacks are built to last by using robust PEM components and stack technologies.
The following models are available as specified:
|
Model |
H2 Flow (ml/min) |
Active area |
Number of Cell |
Current (A) |
Working Voltage (V) |
Net Weight |
Gross Weight |
|
Q-60 |
60 |
10 cm² |
1 |
10 |
2.3±20% |
0.6 |
1.5 |
|
Q-120 |
120 |
10 cm² |
2 |
10 |
4.6±20% |
0.7 |
1.5 |
|
Q-180 |
180 |
10 cm² |
3 |
10 |
7±20% |
0.8 |
1.5 |
|
Q-240 |
240 |
10 cm² |
4 |
10 |
9±20% |
0.9 |
1.5 |
|
Q-300 |
300 |
56 cm² |
1 |
45 |
2.3±20% |
1.5 |
2.5 |
|
Q-500 |
500 |
56 cm² |
2 |
36 |
4.6±20% |
1.7 |
2.5 |
|
Q-800 |
800 |
56 cm² |
3 |
38 |
7±20% |
1.9 |
2.5 |
|
Q-1000 |
1000 |
56 cm² |
4 |
36 |
9±20% |
2.1 |
2.5 |
|
Q-1300 |
1300 |
56 cm² |
5 |
37 |
12±20% |
2.4 |
3 |
|
Q-1500 |
1500 |
56 cm² |
6 |
36 |
14±20% |
2.7 |
3.5 |
|
Q-1800 |
1800 |
56 cm² |
7 |
37 |
16±20% |
3.5 |
4 |
|
Q-2000 |
2000 |
56 cm² |
8 |
36 |
18±20% |
4 |
4.5 |
Other features:
- Membrane type: PFSA
- Membrane thickness: 170 micrometer
- Recommended operation temperature: <60°C
- Stack pressure: <0.7 MPa
- Water quality requirements: water resistivity>1MΩ*cm (or water conductivity<1us/cm)
- Expected lifetime: well over 10000hrs
3-5 weeks lead time is to be expected.
Please let us know if you want a different stack at info@electrohy.com
