Custom Visualizable ALK electrolyzer

Custom Visualizable ALK electrolyzer is custom-built for laboratory use, allowing direct observation of the actual electrode reaction and bubble flow field during hydrogen production by water electrolysis.

Typical parameters:

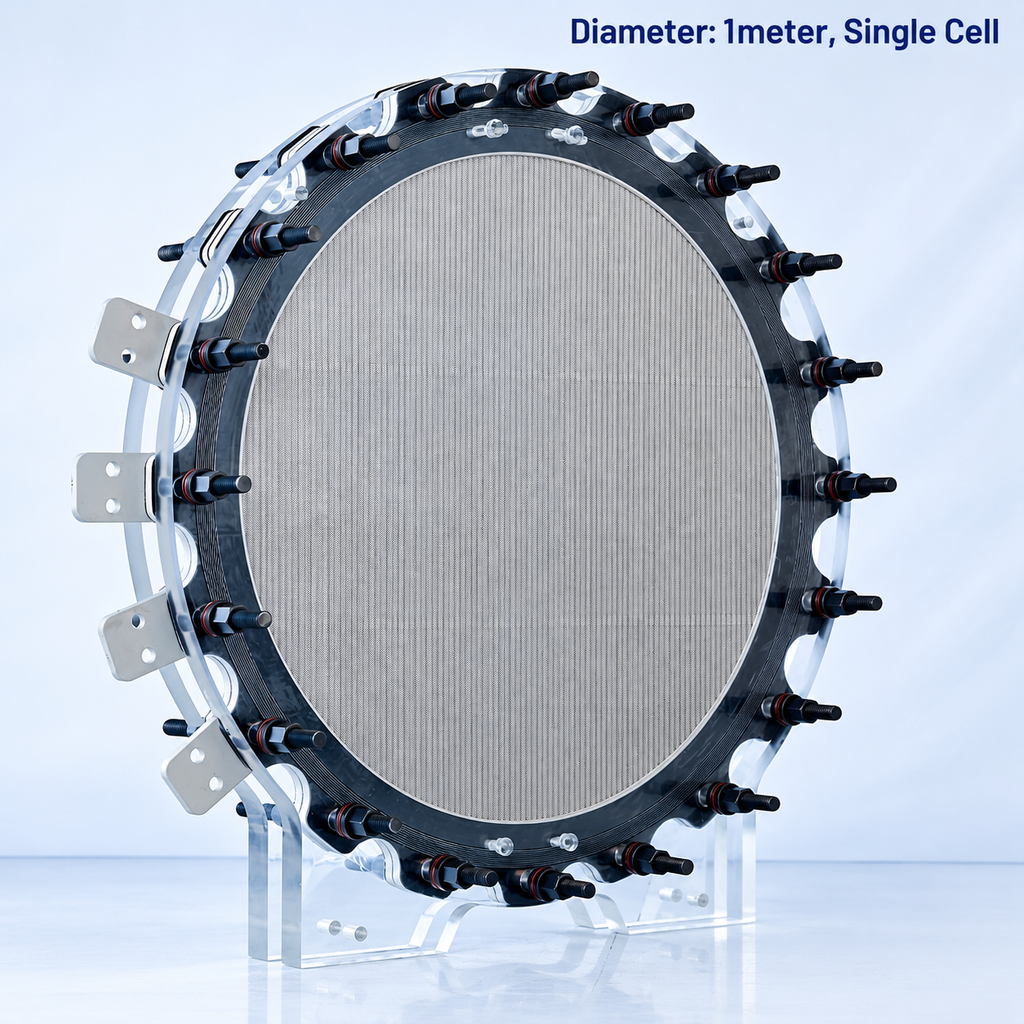

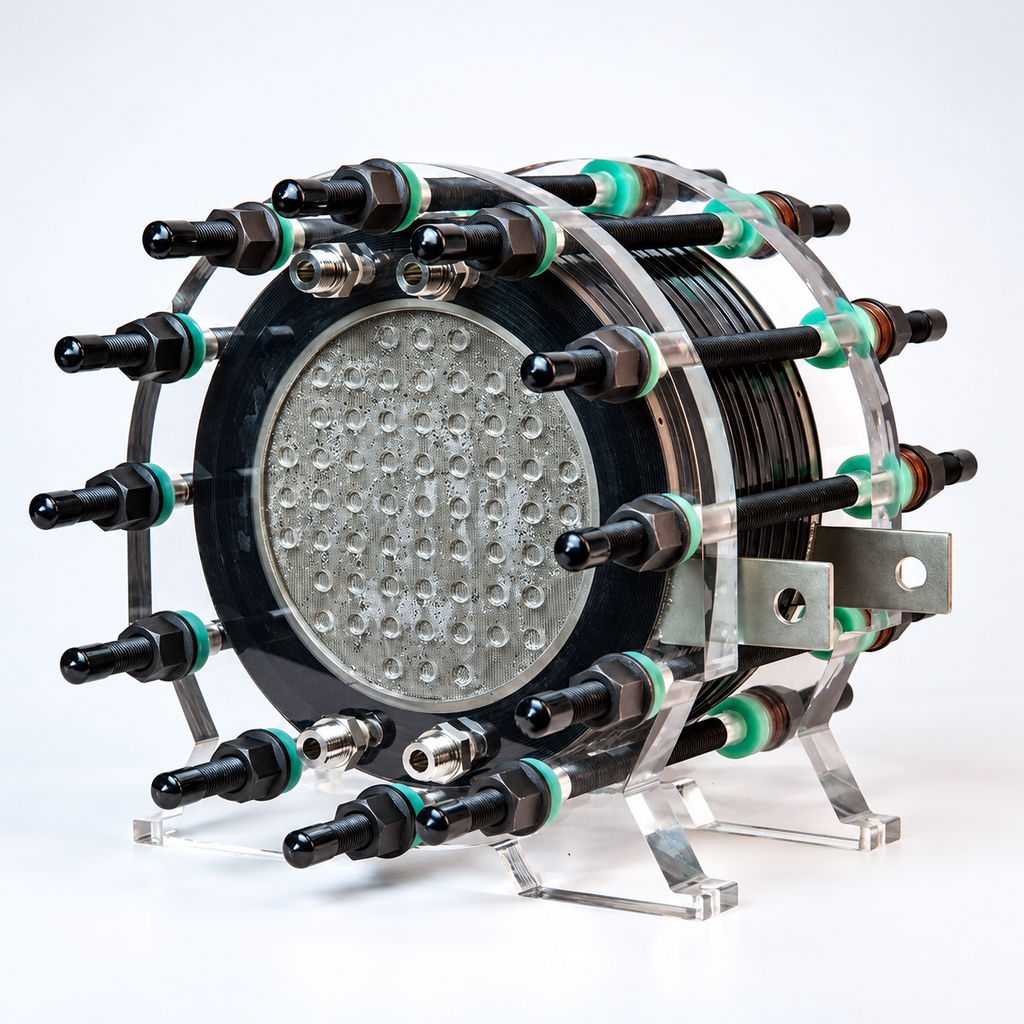

• Diameter of active area: 113mm, 198mm, 300mm, 1000mm or a diameter of your choice
• End plate material: Acrylic (or PMMA)
• Electrodes: Raney Ni, alloy, precious metal
• Diaphragm: PPS / composite diaphragm / ion solvent membrane, etc.
• Pressure: Atmospheric
• Electrolyte: 5-30% KOH solution
• Inlet/outlet positions and flow-channel layout: Customizable to fit different piping schemes.

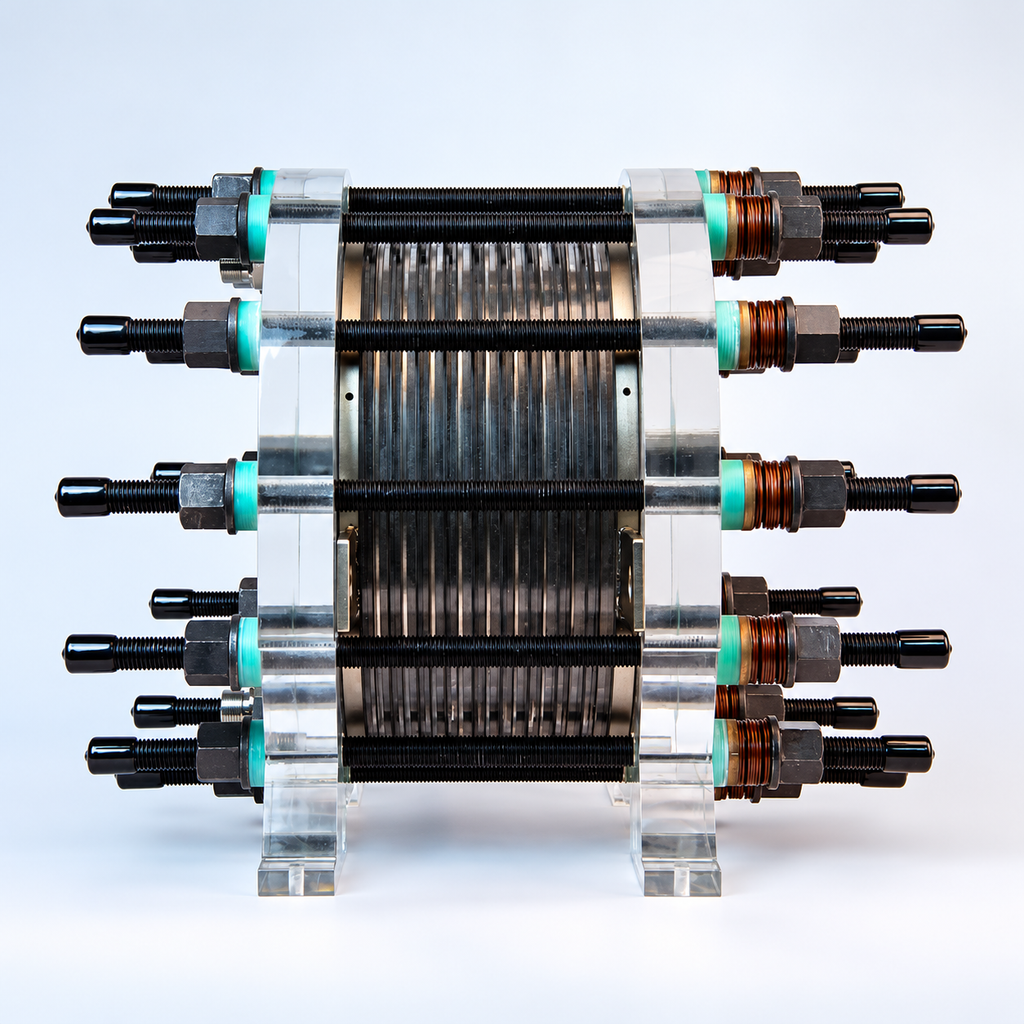

Please note that it's visualizable from sides. Let us know at info@electrohy.com if you have any questions.
