In-situ Multifunctional Testing Electrochemical Cell - In-situ-X

In-situ-X series of the electrochemical cell allows a researcher to utilize different testing protocols such as UV, Raman, XAFS, or XRD to study various reactions and study the changes by utilizing the stated scientific protocols.

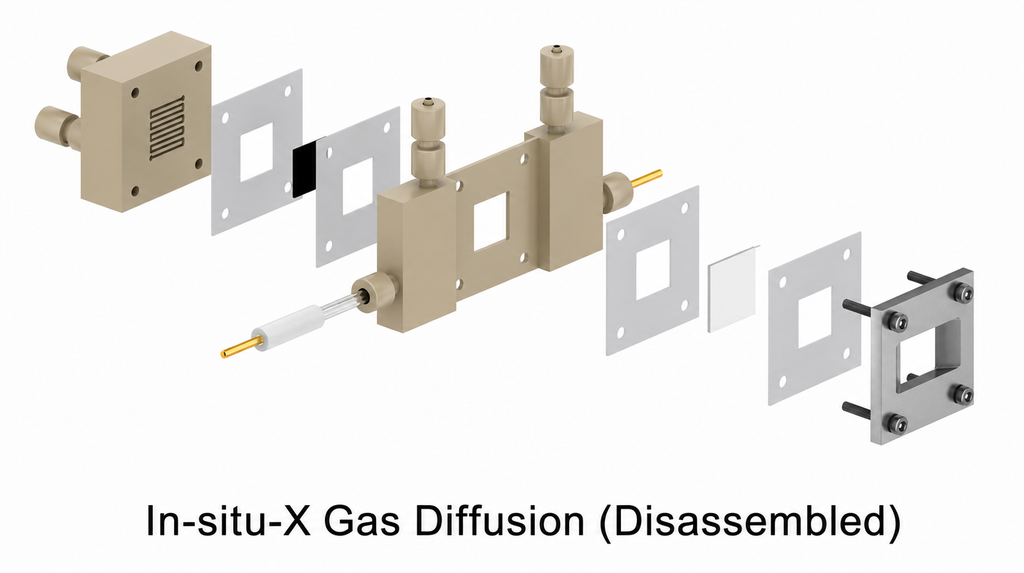

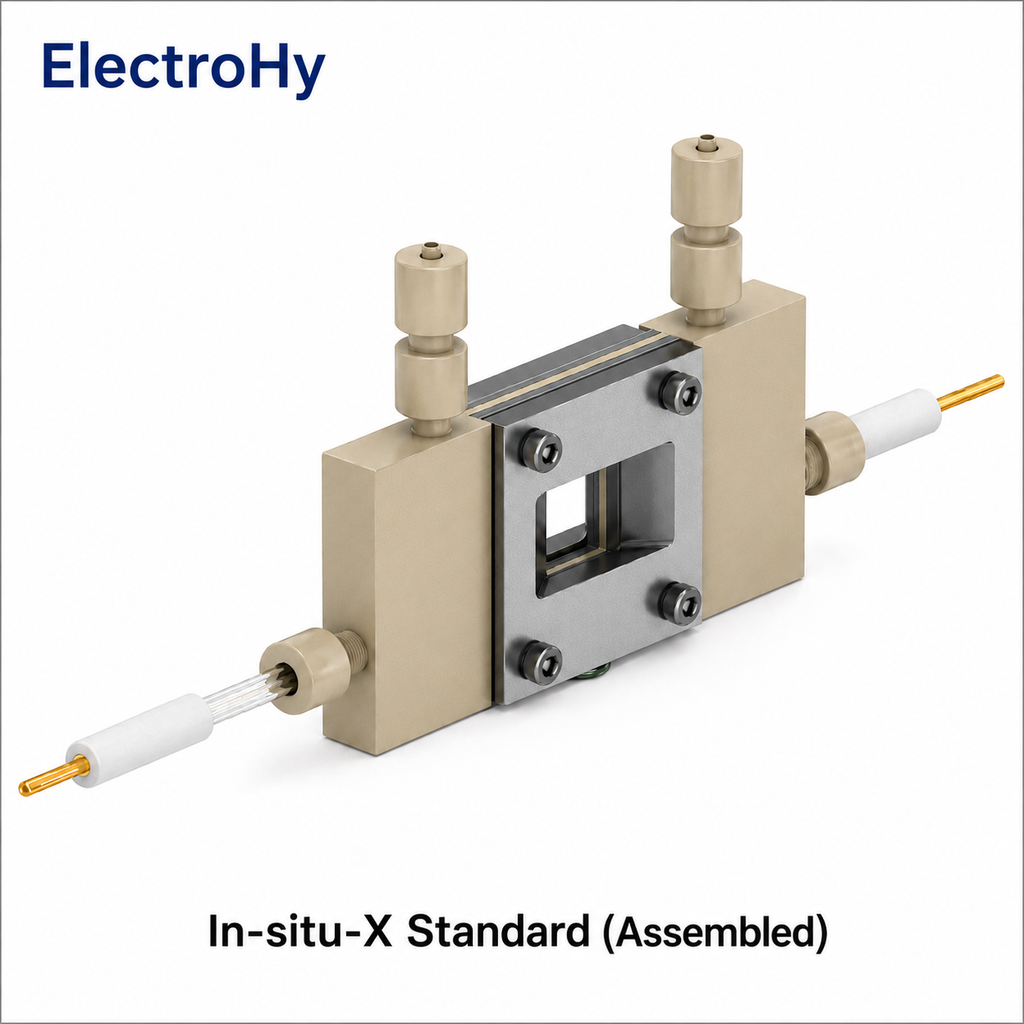

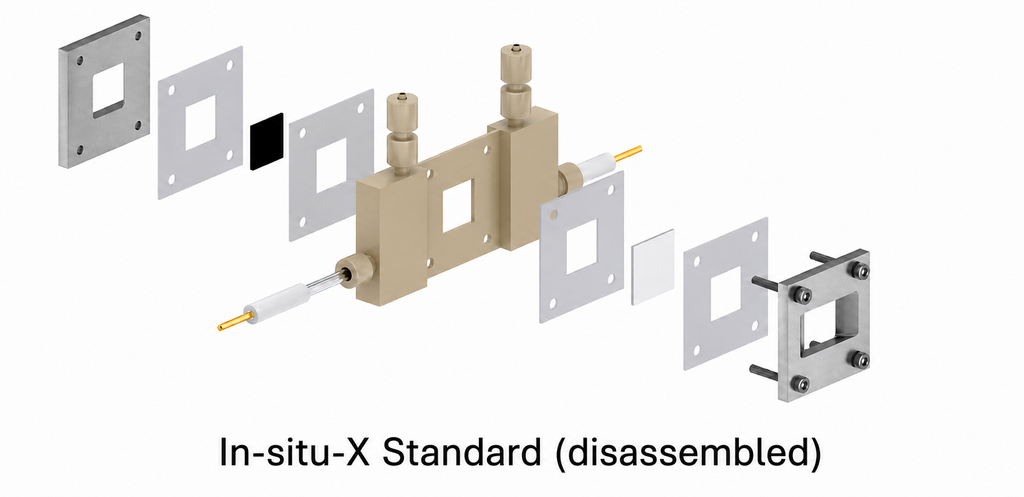

• Two different styles: In-situ X Standard and In-situ Gas Diffusion
• Operation: In-situ X Standard enables a flow cell geometry where a researcher can bring the electrolyte into the chamber that has the reference electrode, then making contact with the working electrode, and then contacting the counter electrode and finally flowing out of the cell to form a perfect closure. Gas Diffusion cell allows the flow of a gaseous species.

• Versatility: This is mainly reflected in the replacement of the front window (to make the cell compatible for the intended use), Quartz and Sapphire windows for UV and Raman tests, Kapton film based window for XAFS tests, and Beryllium window for XRD tests.
• Materials of Construction: High purity titanium and PEEK (poly ether ether ketone).
• Cavity size: 15 mm by 15 mm by 1.2 mm

Note:  AgCl electrode and platinum pair electrodes are standard, window sheet is provided.

3-5 weeks lead time is to be expected.

Please let us know if you have different requests or have a need for additional technical documentation for this product at info@electrohy.com
