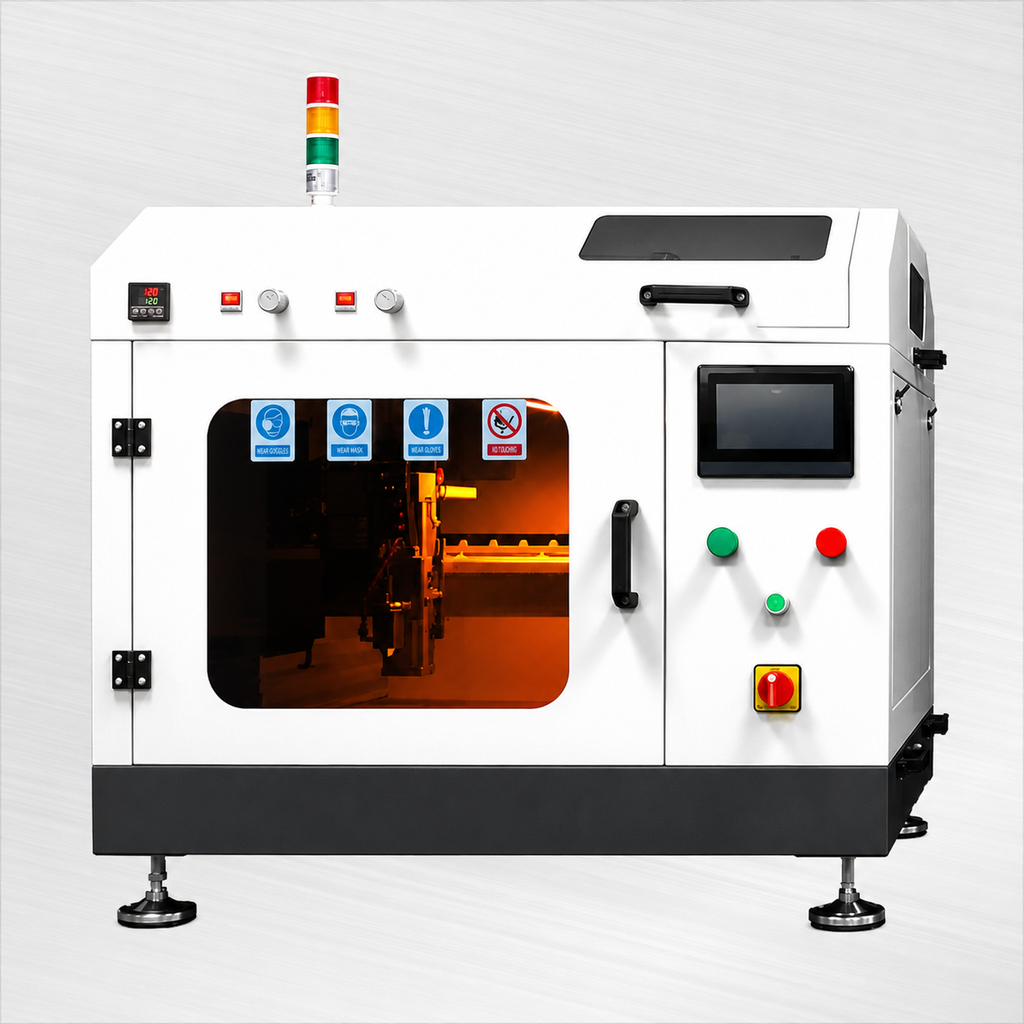

Ultrasonic Spray Coater U4000M

Ultrasonic Spray Coater U4000M is a programmable bench top coater, ideal for producing various uniform and durable coatings in R&D process. The U4000M integrated with different ultrasonic nozzles spraying width from 1 mm to 60 mm is designed for spraying PEM, GDL, electrode and electrolyte membranes, by depositing solutions, suspensions as well as carbon black ink suspension, PTFE binder, ceramic slurry, platinum and other precious metal catalysts. The operating system with multiple spraying methods is stable and easy to operate.

• Ideal for R&D or low-volume production
• Compact desktop design that is easy to move
• The material usage ratio > 95%
• Reliable, repeatable and consistent coating, uniformity of ±2%
• Maximum spray area: 300 x 300 mm
• Certifications: TÜV, ISO, ECM, CSA
• Warranty: 1 year

This advanced spray coating machine has the following main features:

• Soft, low-velocity spray to avoid overspray
• Reduced coating material up to 80%
• Reduce air pollution
• Self-cleaning ultrasonic nozzle prevents clogging
• Reduced the maintenance and downtime
• Ultra-low flow rate continuous or intermittent precision spraying
• Corrosion-resistant stainless steel and titanium construction

While U4000M with a spray area of 300 x 300 mm is commonly used in lab, spray areas of 100 x 100 mm, 200 x 200 mm, 400 x 400 mm, 600 x 600 mm, 800 x 800 mm,1000 x 1000 mm and inline continuous coaters are also available.

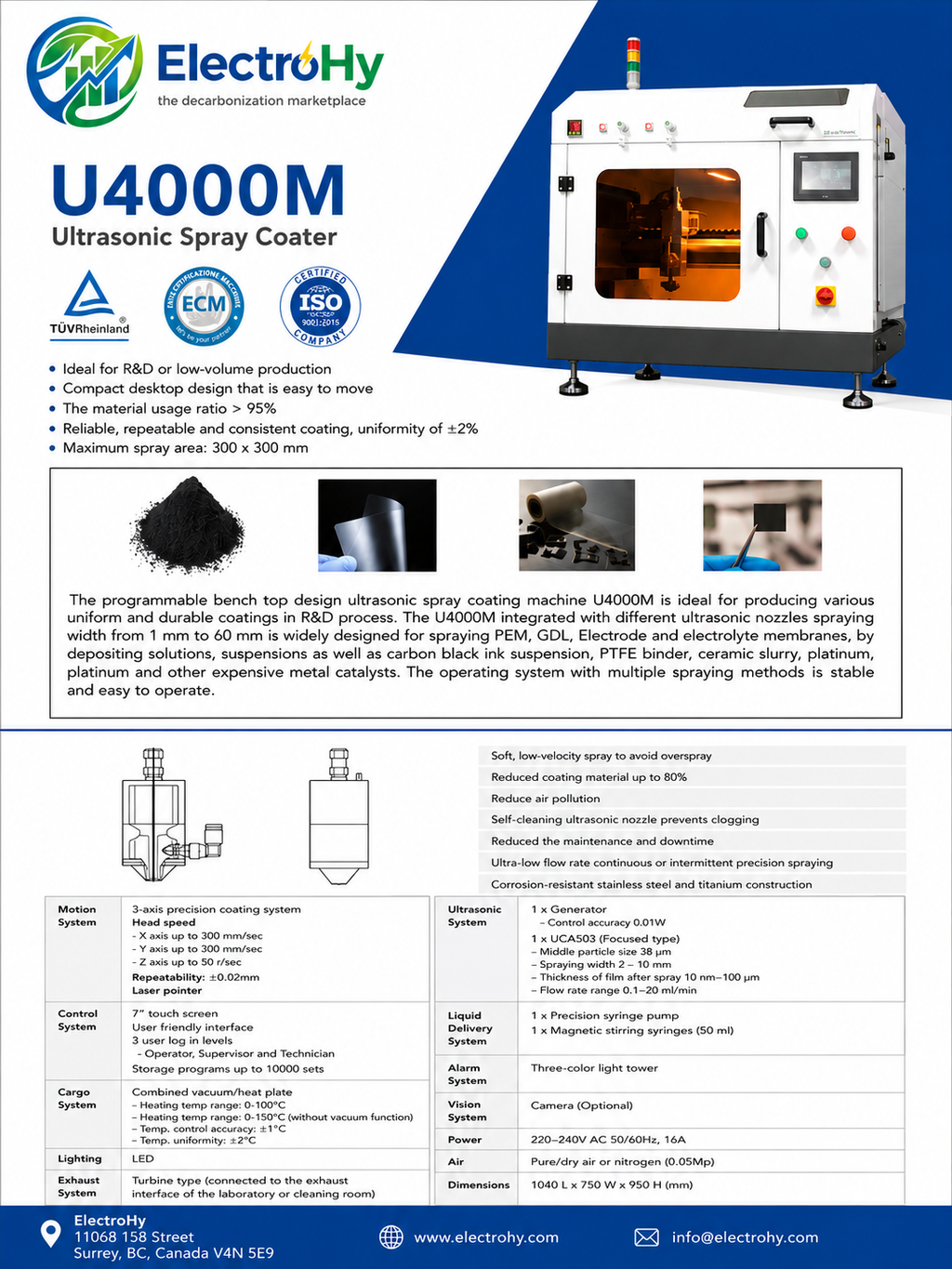

Please see the attached brochure picture file for more specifications for U4000M and let us know at info@electrohy.com if you have any question.
